CHT cylinder head temperature montoring and alarm

CHT plug connector with integrated sensor- replacement for VDO ringsensor
CHT plug connector with integrated sensor- replacement for VDO ringsensor
Komplettes Set um den Ringsensor zu ersetzen für Motor Typ 1 + 4. Bestehend aus: Set to replace the ring sensor used with VDO gauge for typ 1 and 4 motor
  • plug connector with inegrated thermo sensor
  • fit to VDO instrument Celsius and Fahrenheit (300C / 600F)
  • coupling to use the same cable as before
  • pin for plug (SAE)
  • manual english
ATTENTION: only with old VDO gauges 50-300°C or 100-600°F. If you send us your gauge we will check function.
129,00  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. 19% VAT

Add to cart

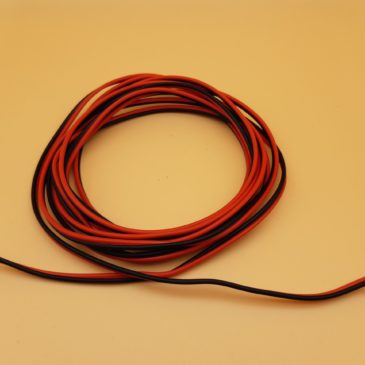

cable to connect the sensor
2,50  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. 19% VAT

Add to cart
CHT Cylinder head temperature gauge 52 mm – variations – only gauge
CHT Cylinder head temperature gauge 52 mm – variations – only gauge
  • ring optics black or chrome
  • diameter 52 mm
  • range 100-300° C
  • analog, mechanical clockwork
  • housing metal with holder
  • for 6 + 12 V
  • illumination 2W 12V standard plug
  • without sensor and cable
  • can be used for VDO ringsensor
169,00  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. VAT

Select Options
ZKT Stage 1.1 – CHT cylinder head temperature monitoring (set) – 6 or 12 Volt
ZKT Stage 1.1 – CHT cylinder head temperature monitoring (set) – 6 or 12 Volt

 system to be installed in the passengers cabin for type 1 and type 4 motors voltage 6 or 12 Volt (choose) controller with small digital display 48 x 24 mm Celsius or Fahrenheit temperature alarm individual adjusted factory adjustment 250°C … Continued

289,00  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. VAT

Select Options
ZKT 1.0 – CHT cylinder head temperature montoring – set – 6 or 12Volt
ZKT 1.0 – CHT cylinder head temperature montoring – set – 6 or 12Volt

System to be placed in the motor compartment

  • for type 1 and type 4 motors
  • voltage 6V oder 12V (choose)
  • temperature alarm by flashing oil pressure lamp
  • alarm can be adjusted individual (standard 250° C)
  • oil pressure alaram same function as before
  • ready wired for installation
  • electric connection by only 3 wires
  • Plus / Minus / oil pressure switch
  • no change of the electric
  • no need to put additional cables in

scope of delivery

  • plug connector with integrated sensor
  • aluminium "blackbox" ready for installation
  • english instruction manua
278,00  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. VAT

Select Options
CHT 2.0 set – cylinder head temperature monitoring – black or chrome
CHT 2.0 set – cylinder head temperature monitoring – black or chrome
  • plug connector with temperature sensor
  • 4m cable with connector
  • diameter 52 mm
  • range 100-300° C
  • analog, mechanical clockwork
  • housing metal with clip
  • for 6 + 12 V
  • illumination 2W 12V standard plug
298,00  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. VAT

Select Options
Placeholder
CHT Cylinder head temperature gauge 52 mm – black or chrome – only gauge
  • ring optics black or chrome
  • diameter 52 mm
  • range 100-300° C
  • analog, mechanical clockwork
  • housing metal with holder
  • for 6 + 12 V
  • illumination 2W 12V standard plug
  • without sensor and cable
  • can be used for VDO ringsensor
169,00  Preise inkl. Mwst. kostenloser Versand Deutschland ab € 25,00

incl. VAT

Select Options
